Overview
Below are sample diagrams to illustrate how I usually specify the flow.
since the MuleSoft trial license has expired,
but it worked.. I swear!!

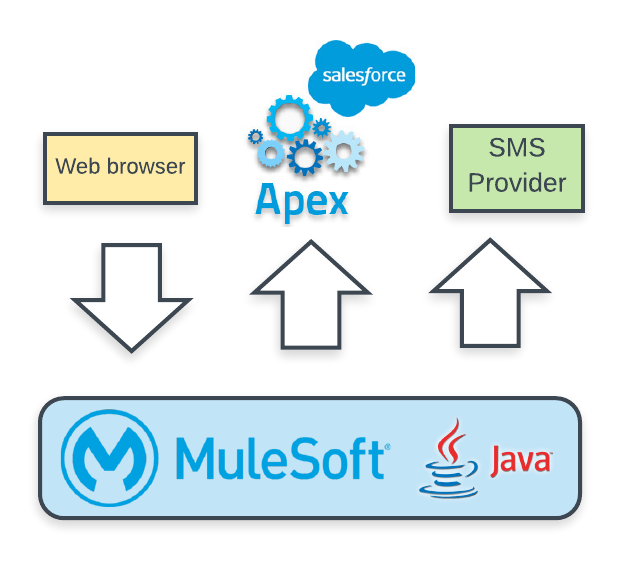

Architecture
Runtime: Mule 4.1.4, v0.1 Core, Java 8
Salesforce API version: 45
Java libraries used:
Specification

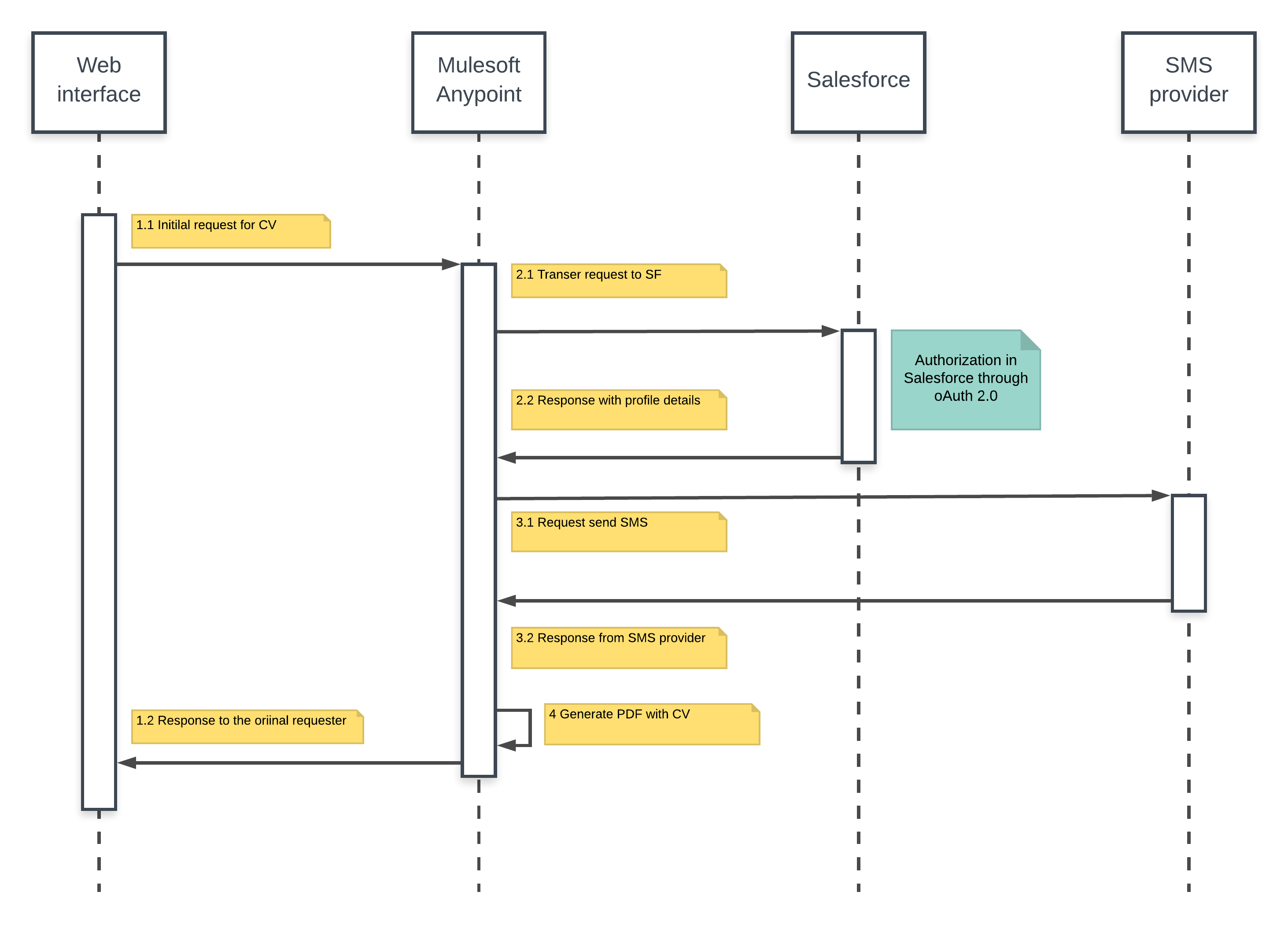

Process Diagram
| Step # | Message | Comment |
|---|---|---|
| 1.1 | GET request to Mule app (Resource: cvprofiler.us-e2.cloudhub.io/cvprofile) |
|
| 2.1 | GET request to Salesforce REST service (Resource: https://eu19.salesforce.com/services/apexrest/whois) |
|
| 2.2 |
{ "lastName": "Ivanova", "firstName": "Jane", "headLine": "Integration Engineer", ... "contacts": [ { "contact": "+7 916 687 90 17", "type": "phone" }, { "contact": "jane.ivanova.work@gmail.com", "type": "email" } ] } |
Response from Salesforce with C details |
| 3.1 | URL-encoded POST request with parameters: apikey = eTeE3Fre1sd0sdj9j4Hk6dysFq3vsd message = Some geek has just requested your CV! sender = nucleusfox numbers = 447123456789 Example: https://api.txtlocal.com/send/?apikey=eTeE3Fre1sd0sdj9j4Hk6dysFq3vsd&message=Some geek has just requested your CV!&sender=nucleusfox&numbers=447123456789 |
POST request to SMS provider (Resource: https://api.txtlocal.com/send/) |
| 3.2 | { "balance":1162, "batch_id":123456789, "cost":1, "num_messages":1, "message":{ "num_parts":1, "sender":"nucleusfox", "content":"Some geek has just requested your CV!" }, "messages":[{ "id":"1151346216", "recipient":447123456789 }, { "id":"1151347780", "recipient":447987654321 }], "status":"success" } |
Response from SMS provider |
| 4 | Method convertTextToPDF of class ConverterPDF used for JSON convertion into PDF file. |
Convert text to PDF in class ConverterPDF |
| 1.2 | { "lastName": "Ivanova", "firstName": "Jane", "headLine": "Integration Engineer", ... "contacts": [ { "contact": "+7 916 687 90 17", "type": "phone" }, { "contact": "jane.ivanova.work@gmail.com", "type": "email" } ] } |
Response from Mule app to the original page |

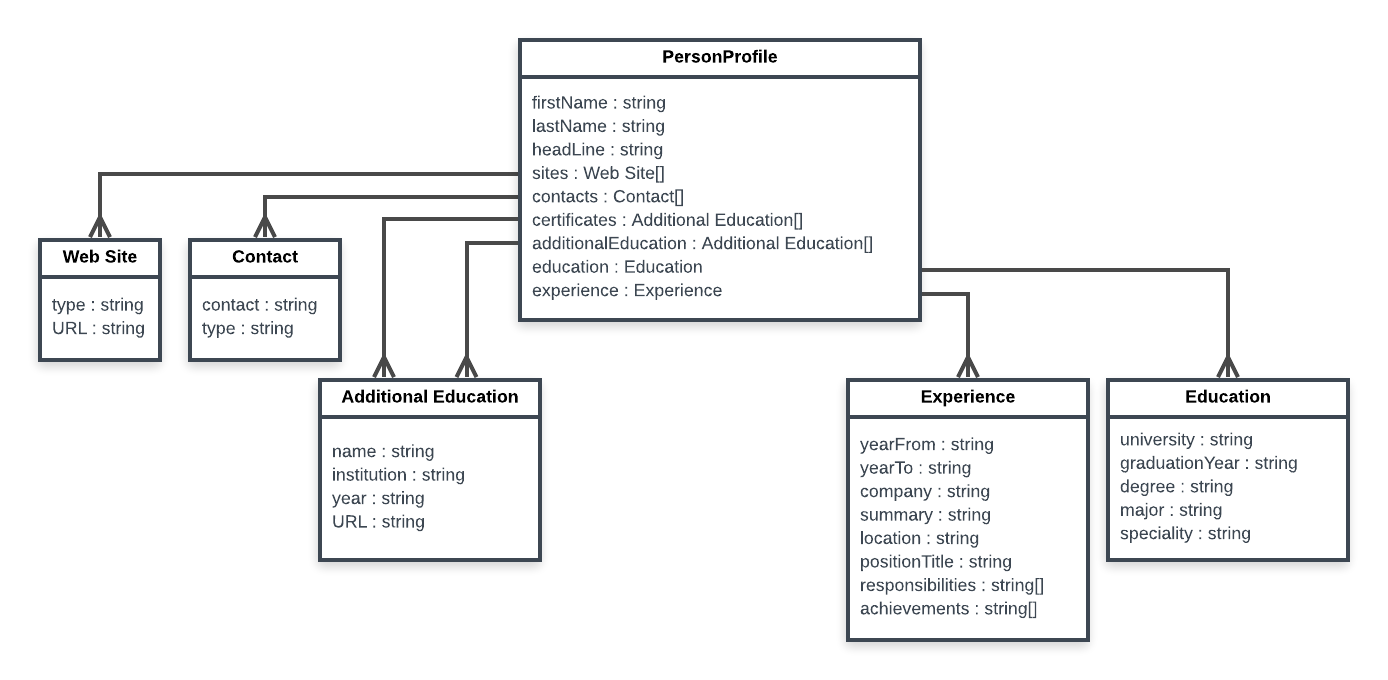

Data Model
| Field | Type | Occurs | Description |
|---|---|---|---|
| firstName | String | 1-1 | First name |
| lastName | String | 1-1 | Last name |
| additionalEducation | Structure AdditionalEducation | 0-N | List of additional courses |
| education | Structure | 0-N | List of education gained |
| certificates | Structure AdditionalEducation | 0-N | List of certificates achieved |
| sites | Structure Site | 0-N | List of web sites (networks, profiles, personal) with more details. |
| experience | Structure Experience | 0-N | Work experience. |
| contacts | Structure ContactRecord | 0-N | Contacts available. |
| Field | Type | Occurs | Description |
|---|---|---|---|
| contact | String | 1-1 | Phone / Email |
| type | String | 1-1 | Phone / Email |
| Field | Type | Occurs | Description |
|---|---|---|---|
| summary | String | 1-1 | Short summary of experience |
| responsibilities | String | 0-N | List of responsibilities |
| positionTitle | String | 1-1 | Position title |
| achievements | String | 0-N | List of achievements |
| yearFrom | String | 1-1 | Year of start of work |
| yearTo | String | 1-1 | Year of end of work |
| location | String | 0-1 | Location of work |
| company | String | 1-1 | Company |
| Field | Type | Occurs | Description |
|---|---|---|---|
| speciality | String | 1-1 | Program speciality |
| major | String | 1-1 | Program major |
| degree | String | 1-1 | Degree awarded |
| graduationYear | String | 1-1 | Year of graduation (real or planed) |
| Field | Type | Occurs | Description |
|---|---|---|---|
| institution | String | 1-1 | Institute or company carried course and/or certificate awarded |
| year | String | 1-1 | Year of receiving additional education |
| name | String | 1-1 | Name of course / certificate |
| URL | String | 0-1 | Link to certificate if available |
| Field | Type | Occurs | Description |
|---|---|---|---|
| comment | String | 1-1 | Comment to the content of site |
| type | String | 1-1 | Type of site |
| URL | String | 1-1 | URL of site |
